Physical Characteristics

Dimensions	7.89 in. L x 2.76 in. W x 1.52 in. D 200.5 mm L x 70 mm W x 38.5 mm D
Weight	Standard battery: 10.4 oz./296 g Extended battery: 11.2 oz./316 g
Display	4 in. WVGA (800 x 480), LED backlight; color display; optically bonded to touch panel
Touch Panel	Capacitive touch panel; multi-touch; Corning™ Gorilla™ Glass
Power	Standard capacity 3500 mAh/12.60 Wh Extended capacity 4900 mAh/17.64 Wh
Imager Window	Corning™ Gorilla™ Glass
Expansion Slot	User accessible MicroSD slot up to 128 GB SDXC
SIM	One Nano SIM slot; optional eSIM (MC2700 only)
Notifications	Audible tone; multi-color LEDs; haptic feedback (China SKU only)
Keypad	34 key Numeric with FN keys; supports on-screen keypad
Voice and Audio	Internal speaker and microphone; Bluetooth wireless headset support; high quality speaker phone
Buttons	Physical scan, volume up/down; power
Network Connections	MC2200/MC2700: WLAN (WiFi), WPAN (Bluetooth), USB 2.0 High Speed (Host and Client) MC2700 only: WWAN (cellular)

Performance Characteristics

CPU	Qualcomm Snapdragon™ 660 octa-core, 1.8 GHz
Operating System	MC2200 and MC2700: 2GB/16GB—Upgradeable to A11 MC2200 and MC2700: 3GB/32GB—Upgradeable to A14
Memory	2 GB RAM/16 GB Flash memory 3 GB RAM/32 GB Flash memory
Security	Product is FIPS 140-2 validated. This security feature can be enabled on select configurations through a custom SKU request. Product supports Secure Boot, Verified Boot

User Environment

Operating Temp.	-4° F to 122° F/-20° C to 50° C
Storage Temp.	-40° F to 158° F/-40° C to 70° C
Humidity	5%-95% non condensing
Drop Spec.	Multiple 5 ft./1.52 m drop to concrete from 14° F to 122° F/-10° C to 50° C per MIL-STD 810G
Tumble Spec.	500 1.6 ft./0.5 m tumbles; meets and exceeds IEC tumble specifications
Sealing	IP65 per applicable IEC sealing specifications
Vibration	4g’s PK Sine (5Hz to 2kHz); 0.04g 2/Hz Random (20 Hz to 2 kHz); 60 minutes duration per axis, 3 axis
Scanner Window	Corning™ Gorilla™ Glass
Electrostatic Discharge (ESD)	+/-15 kV air discharge, +/-8 kV direct/indirect discharge;

Interactive Sensor Technology (IST)

Motion Sensor

3-axis accelerometer with MEMS Gyro

Data Capture

Scanning	SE4100 1D/2D standard range imager
Camera	Optional rear camera 13 MP Phase Detection Auto Focus, with Flash LED
NFC	ISO14443 Type A and B: FeliCa and ISO 15693 cards. P2P mode and Card Emulation via Host (HCE) support

Wireless WAN, Data Communications Only

Radio Frequency Band

MC2700 North America
• UMTS: B2/B4/B5
• LTE: B2/B4/B5/B7/B12/B13/B14/B17/B66
• LTE: Category 6

MC2700 Rest of World
• GSM: 850/900/1800/1900
• UMTS: B1/B2/B3/B4/B5/B8/B9/B19
• LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B19/B20/B28
• LTE-TDD: B38//B40/B41
• LTE: Category 6

MC2700 China
• GSM: 850/900/1800
• UMTS: B1/B5/B8
• LTE-FDD: B1/B3/B5/B7/B8
• LTE-TDD: B38/B39/B40/B41
• LTE: Category 6

VoIP Communications

Optional Workforce Connect Voice3 turns MC2200/MC2700 devices into fully-featured PBX handsets with a custom interface that makes it easy to execute even the most complex telephony features — eliminating the need to purchase and manage additional voice-enabled devices.

GPS

MC2700 only: Autonomous, Concurrent GPS; GLONASS; Gallileo; BeiDou, and A-GPS. Supports IZAT (TM) XTRA

Wireless LAN

WLAN Radio	IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v; Wi-Fi™ certified; IPv4, IPv6, 1x1 MU-MIMO
Data Rates	2.4 GHz: 802.11b/g/n — 20 MHz, 40 MHz — up to 150 Mbps 5 GHz: 802.11a/g/n/ac – 20 MHz, 40 MHz, 80 MHz – up to 433 Mbp
Operating Channels	Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 Channel 36-165 (5180-5825MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 Channel bandwidth: 20, 40, 80 MHz Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency
Security and Encryption	WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit Mode (GCMP-256) EAP-TLS; Enhanced Open (OWE)
Certifications	WFA (802.11n, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise)
Fast Roam	802.11r (Over-The-Air); PMKID caching; Cisco CCKM; OKC

Wireless PAN

Bluetooth

Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) support

Environmental Compliance

Environment
• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006

For a complete list of product and materials compliance.

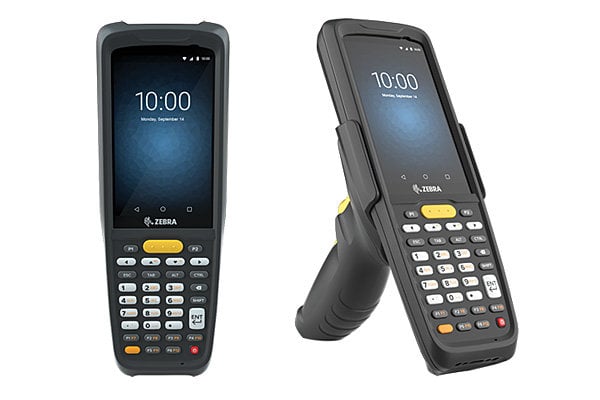

Zebra MC2200 Handheld Mobile Computer
