| Specification | Details | |---|---| | **Standards** | IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.1Q
IEEE 802.1p
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (up to 300Mbps)*
IEEE 802.11ac (up to 867Mbps)* | | **Device Interface** | 3 x 10/100Mbps LAN ports
1 x Gigabit WAN port
WPS/Reset button
LED indicators | | **Special Features** | IEEE 802.1Q tagged-based VLAN
Bandwidth controls
MU-MIMO
4 x 5 dBi dual band antennas
IPv6 support
Multi-Language interface: English, Spanish, French, German, Russian/Portuguese
Pre-encrypted wireless network
TR-069 | | **Access Control** | Wireless encryption: 64/128-bits WEP; WPA/WPA2
NAT, virtual server/port forwarding, port triggering, firewall traffic rules, DMZ host, UPnP/NAT-PMP, allow/deny ping on WAN interface
PPTP/L2TP/IPsec VPN passthrough, FTP/TFTP/SIP/RTSP/IRC/H.323 passthrough
MAC, IP, Domain name, Application filtering
Wireless client isolation
DoS prevention
Quality of Service
WMM
Management/Monitoring
HTTP/HTTPS web-based management
Internal system logging
Manual firmware upgrade
Backup and restore configuration
Diagnostic tools: Built-in ping and traceroute network utilities
Frequency
2.412 – 2.472GHz
5.180 – 5.825GHz
Modulation
802.11b: CCK, DQPSK, DBPSK
802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM
802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol
CSMA/CA with ACK
MIMO Configuration
5GHz: 2x2:2
2.4GHz: 2x2:2
Antenna Gain
4 x 5 dBi Fixed Antenna
Wireless Output Power
802.11a: FCC: 16 dBm (max.) / IC: 16 dBm (max.)
802.11b: FCC: 18 dBm (max.) / IC: 18 dBm (max.)
802.11g: FCC: 17 dBm (max.) / IC: 17 dBm (max.)
802.11n (2.4GHz): FCC: 17 dBm (max.) / IC: 17 dBm (max.)
802.11n (5GHz): FCC: 15 dBm (max.) / IC: 15 dBm (max.)
802.11ac: FCC: 13 dBm (max.) / IC: 13 dBm (max.)
Receiving Sensitivity
802.11a: -75 dBm (typical) @ 54Mbps
802.11b: -90 dBm (typical) @ 11Mbps
802.11g: -72 dBm (typical) @ 54Mbps
802.11n (2.4GHz): -72 dBm (typical) @ 300Mbps
802.11n (5GHz): -72 dBm (typical) @ 867Mbps
802.11ac: -61 dBm (typical) @ 867Mbps
Wireless Channels
2.4GHz: FCC: 1–11
5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165, | | **Power** | Input: 100 – 240V AC, 50 – 60Hz, 1A
Output: 12V DC, 1A external power adapter
Max. Consumption: 5.68W | | **Operating Temperature** | 0° – 40° C (32° – 104° F) | | **Operating Humidity** | Max. 90% non-condensing | | **Certifications** | FCC
IC
Dimensions (L x W x H)
239 x 155 x 30mm (9.4 x 6.1 x 1.18 in.) | | **Weight** | 228g (8 oz.) | | **Warranty** | 2 year |

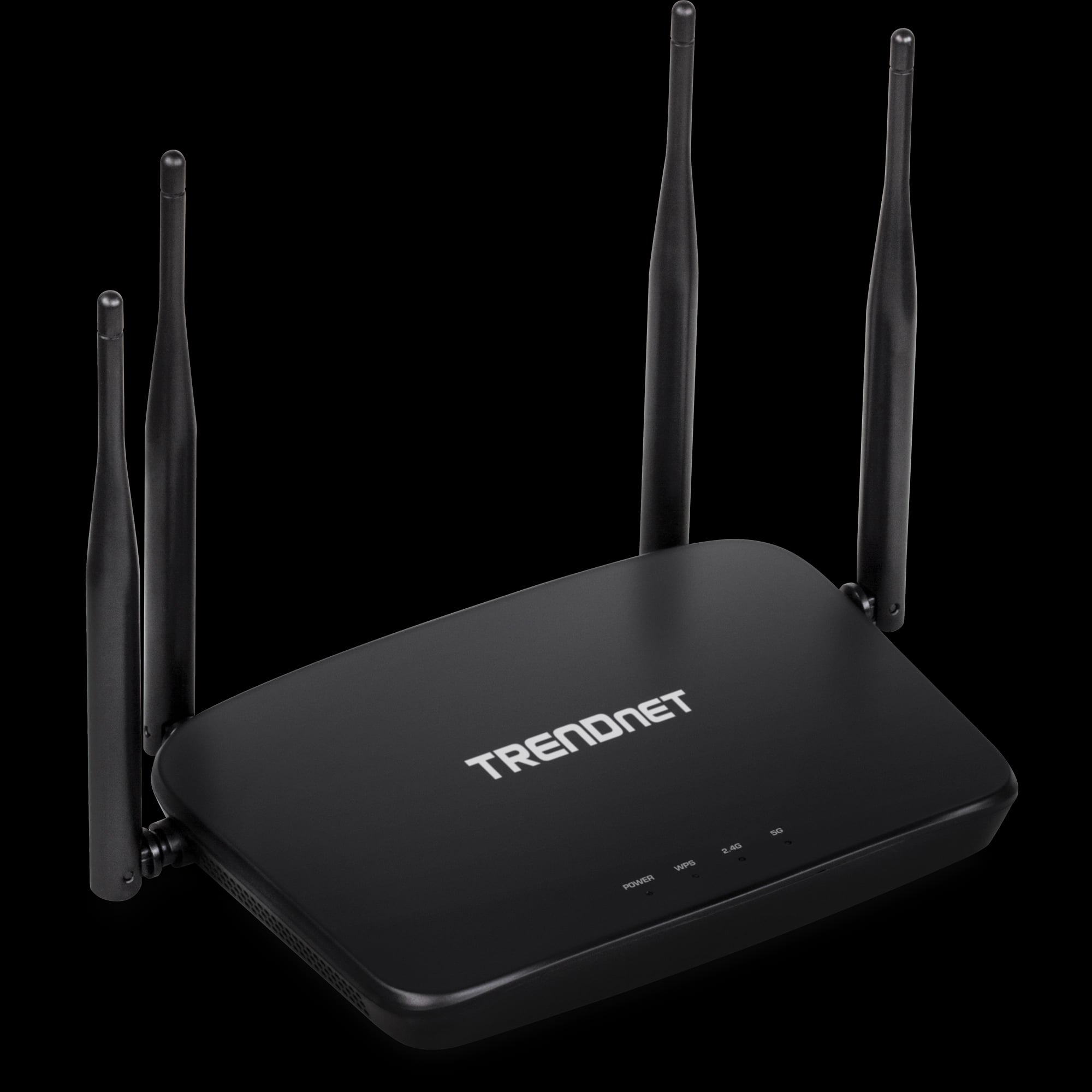

TRENDnet TEW-831DR AC1200 Dual Band WiFi Router

Model: TEW-831DR
